5W Pin-Type Models

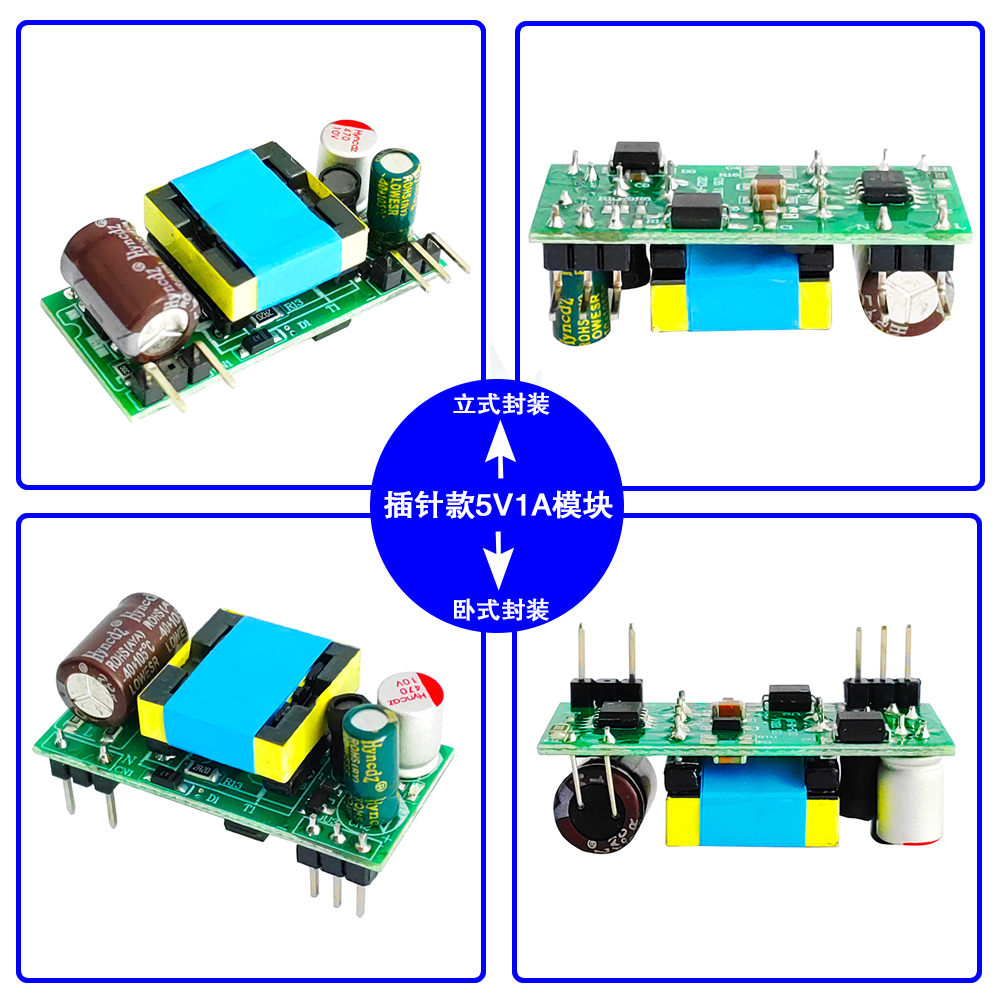

PAC05-110SP Series – 5W Pin-Type Models

  • Compact 5W bare board power supply ideal for space-constrained applications
  • Pin-type design for easy and quick installation
  • Wide input voltage range: 90-264VAC
  • High efficiency for reduced power consumption and heat
  • Comprehensive protection: over-voltage, over-current, and short-circuit protection for safe and reliable operation
  • Certified to international safety standards (e.g., UL, CE) for assured quality
  • Wide operating temperature range suitable for various industrial environments
  • Low leakage current design compliant with environmental and safety regulations
INQUIRE NOW

Typical Applications

  • Smart switches and sockets
  • Embedded control boards Compact IoT devices
  • LED indicators or signal lights Smart home modules
  • Small-size industrial controllers

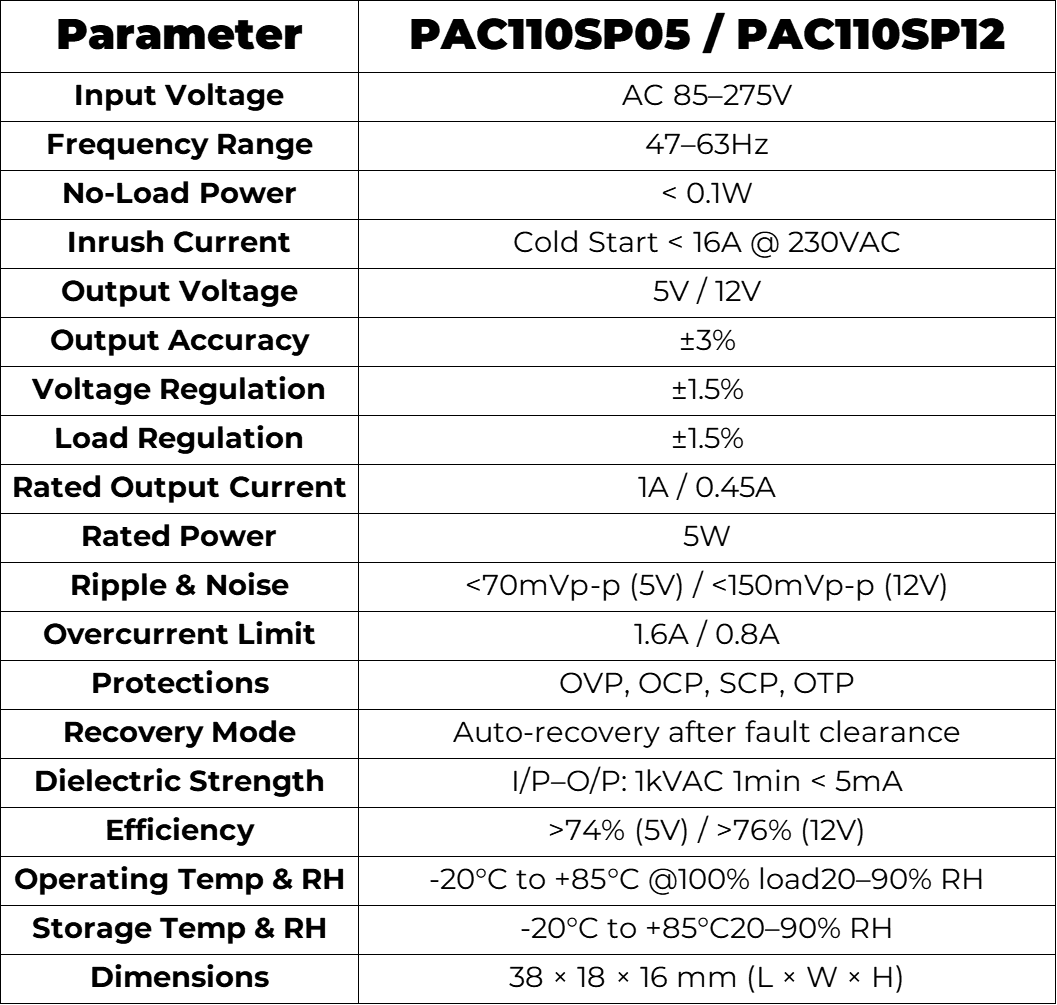

Technical Specifications

PAC05-110SP Series – 5W Pin-Type Models

PAC110SP series is designed with a pin-type layout for easy integration in PCB-based systems.Available in both 5V and 12V single-output versions, it include comprehensive protection featuresand high efficiency in compact size.
