Product Overview

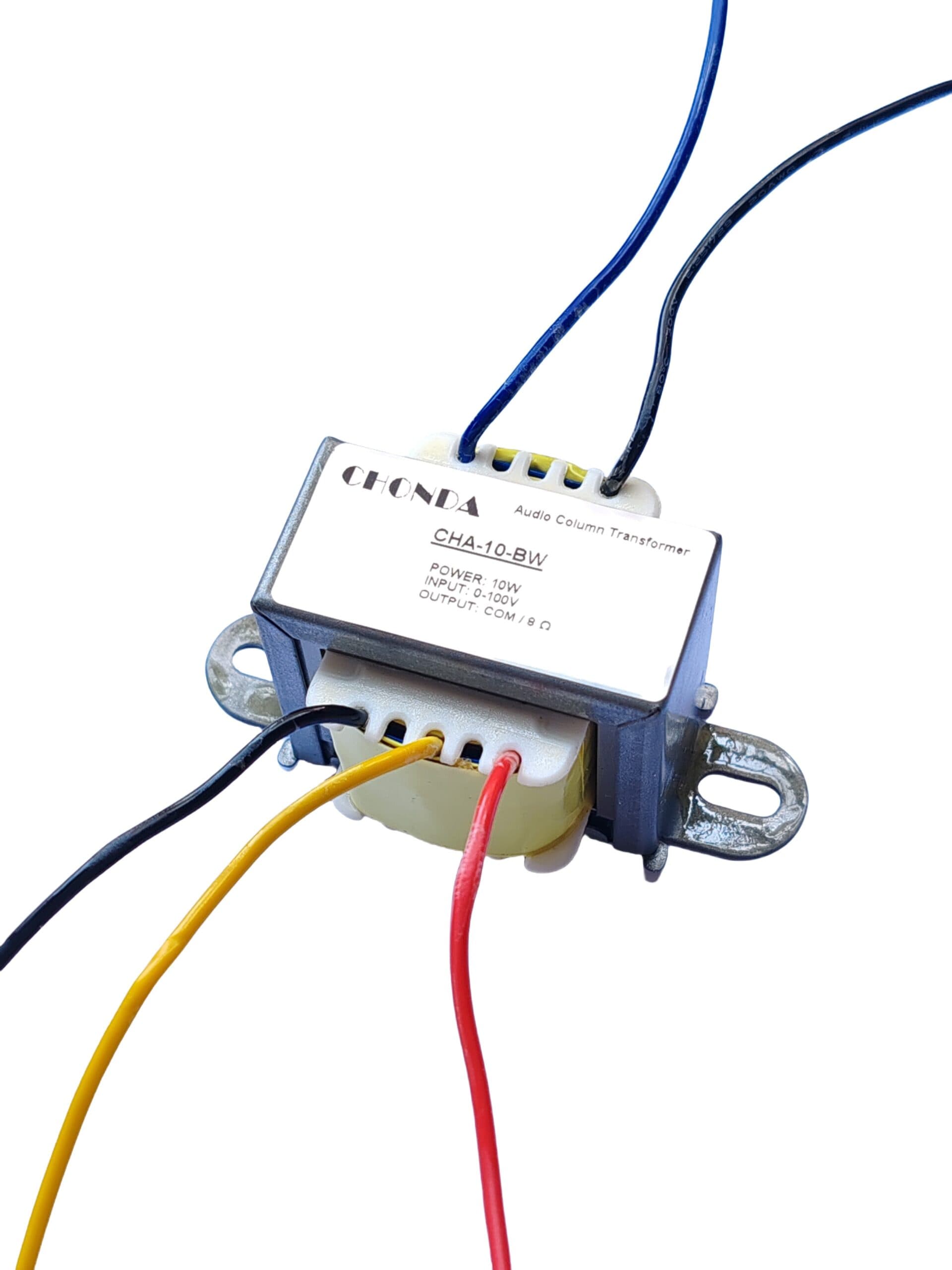

The Galvanic Isolation Church Audio Transformer (70V/100V) is a high-quality, reliable solution designed for PA systems, live streaming, and house of worship applications. This transformer ensures clean, noise-free audio transmission by providing galvanic isolation, effectively eliminating ground loops, hum, and interference.
Ideal for 70V/100V distributed audio systems, it delivers superior sound clarity while protecting your equipment from electrical surges. Whether used in churches, auditoriums, or live streaming setups, this transformer guarantees professional-grade audio performance.
Key Features
✔ Galvanic Isolation – Eliminates ground loops and reduces hum/noise for crystal-clear audio.
✔ 70V/100V Compatibility – Perfect for distributed PA systems in churches, schools, and commercial venues.
✔ High-Quality Signal Transmission – Maintains audio fidelity with minimal distortion.
✔ Durable & Reliable – Robust construction ensures long-term performance in demanding environments.
✔ Easy Integration – Works seamlessly with amplifiers, mixers, and streaming setups.
✔ Surge Protection – Safeguards connected equipment from voltage spikes.
✔ Versatile Use – Ideal for live sound, broadcasting, and permanent installations.
Technical Specifications
Power Rating | Dimensions (L×W×H) mm | Mounting Hole Distance (mm) | Overall Length (mm) | Hole Size (mm) | Weight (kg) |
---|---|---|---|---|---|
3W | 43 × 36 × 36 | 50–53 | 65 | Ø3.8 × 7 | 0.18 |
6W | 43 × 36 × 36 | 50–53 | 65 | Ø3.8 × 7 | 0.18 |
10W | 43 × 40 × 36 | 50–53 | 65 | Ø3.8 × 7 | 0.23 |
15W | 43 × 46 × 36 | 50–53 | 65 | Ø3.8 × 7 | 0.3 |
20W | 50 × 44 × 43 | 60–63 | 75 | Ø4.3 × 8 | 0.4 |
25W | 50 × 50 × 43 | 60–63 | 75 | Ø4.3 × 8 | 0.45 |
30W | 59 × 46 × 50 | 70–73 | 88 | Ø4.3 × 9 | 0.55 |
40W | 59 × 52 × 50 | 70–73 | 88 | Ø4.3 × 9 | 0.65 |
50W | 59 × 57 × 50 | 70–73 | 88 | Ø4.3 × 9 | 0.75 |
60W | 68 × 55 × 56 | 80–83 | 96 | Ø4.3 × 9 | 0.8 |
80W | 68 × 60 × 56 | 80–83 | 96 | Ø4.3 × 9 | 0.92 |
100W | 68 × 64 × 56 | 80–83 | 96 | Ø4.3 × 9 | 1.02 |
Applications
The Galvanic Isolation Church Audio Transformer (70V/100V) is designed for a variety of professional and commercial audio setups, including:
✔ Churches & Houses of Worship – Ensures clear, hum-free audio for sermons, music, and live broadcasts.
✔ PA & Distributed Audio Systems – Ideal for 70V/100V setups in schools, auditoriums, and commercial spaces.
✔ Live Streaming & Broadcasting – Eliminates ground loop noise for clean audio in online services and productions.
✔ Conference Rooms & Theaters – Provides interference-free sound reinforcement.
✔ Background Music Systems – Enhances audio quality in restaurants, retail stores, and public venues.
Why Choose Us?
✔ 10+ Years OEM Experience – Trusted by leading audio brands
✔ 100% Hi-Pot Tested – Every unit rigorously quality checked
✔ Custom Solutions Available – Special impedance ratios & configurations
✔ Global Shipping – 10-15 day lead time on standard models
Ordering & Support
📦 Stock Availability: 3W–100W models ready for shipment within 10-15 business days.
📉 MOQ: X units (bulk discounts available).
🔧 Warranty & Returns:
-
30-Day Performance Guarantee
-
2-Year Limited Warranty covering materials & workmanship defects
Download Specifications
📥 Click Here to Download PDF Datasheet (Includes detailed product specifications & diagrams)
Galvanic Isolation Transformer – FAQs
Q1: What is galvanic isolation, and why is it important in audio systems?
A: Galvanic isolation prevents electrical current from flowing between connected devices, eliminating ground loops that cause hum and noise. This ensures clean, distortion-free audio.
Q2: Is this transformer compatible with both 70V and 100V systems?
A: Yes, it works with both 70V and 100V distributed audio systems, making it versatile for various installations.
Q3: Can I use this transformer for live streaming setups?
A: Absolutely! It effectively removes ground loop noise, making it perfect for streaming, podcasting, and broadcasting.
Q4: Does this transformer affect audio quality?
A: No—it maintains high signal integrity with minimal distortion, ensuring professional-grade sound reproduction.
Q5: How do I install this transformer in my existing PA system?
A: Simply connect it between your amplifier and speaker line. No special tools are needed—just ensure proper wiring for optimal performance.
🔍 Looking for a Specific Configuration?
Our engineers can develop custom solutions for:
• Special impedance requirements
• Harsh environment applications
• High-voltage isolation needs
