High Voltage DC-DC Converter for Railway Power Systems

Modern railway systems rely on numerous electronic control units that require stable low-voltage auxiliary power while operating from high-voltage DC power supplies.

High voltage DC-DC converters play a critical role by converting railway DC bus voltages into isolated 24VDC outputs for onboard control equipment, communication systems, monitoring devices, and safety electronics.

This article explains why high voltage DC-DC converters are essential in railway applications and what design characteristics should be considered when selecting a converter for railway power systems.

1. What Is a Railway Power System?

Railway power systems are designed to supply electrical energy for traction equipment, onboard control electronics, signaling systems, communication networks, and passenger services. Modern railway vehicles operate with high-voltage DC power while numerous auxiliary devices require stable low-voltage power for reliable daily operation.

1.1.High Voltage DC Power Distribution

Railway systems typically distribute electrical energy through high-voltage DC power buses that supply traction equipment and onboard electrical systems.

Depending on the railway application, the DC input voltage may range from several hundred volts to over 1000VDC. This high-voltage architecture enables efficient power transmission while supporting multiple onboard electrical subsystems.

1.2.Auxiliary Control Electronics

Besides traction systems, railway vehicles contain a wide range of low-voltage electronic equipment, including:

Vehicle Control Units (VCU)
PLCs
Communication Modules
Passenger Information Systems
Diagnostic Equipment
Sensors
Safety Monitoring Systems

These electronic devices generally operate from isolated 24VDC auxiliary power supplies.

1.3.Auxiliary Power Conversion

Since the railway DC bus operates at much higher voltages than onboard electronic equipment can tolerate, an isolated high voltage DC-DC converter is required to safely convert high-voltage input into stable low-voltage auxiliary power.

This isolated power conversion supports reliable communication, accurate monitoring, electrical safety, and long-term system stability throughout railway operation.

2. Why High Voltage DC-DC Converters Are Required in Railway Power Systems

Modern railway systems operate using high-voltage DC power supplied from traction batteries, onboard DC buses, or railway electrification systems. While propulsion systems require high voltage, onboard control electronics, communication devices, sensors, and passenger information equipment operate at much lower voltage levels.

A high voltage DC-DC converter safely converts high-voltage DC into stable isolated auxiliary power, allowing these critical subsystems to operate reliably under demanding railway conditions.

2.1.Supplying Stable Auxiliary Power

Railway control equipment requires continuous low-voltage power regardless of fluctuations in the main DC bus.

High voltage DC-DC converters provide regulated 24VDC auxiliary power for vehicle control units, communication systems, sensors, and monitoring devices, ensuring stable operation throughout the entire operating cycle.

2.2.Providing Electrical Isolation

Railway DC buses often operate at several hundred volts or higher.

Electrical isolation protects low-voltage electronics from hazardous voltages while reducing common-mode interference and improving passenger and equipment safety. Isolation also helps railway systems comply with industrial and transportation safety requirements.

2.3.Supporting Reliable Railway Operation

Railway environments expose electronic equipment to vibration, temperature changes, electrical noise, and continuous operation.

Industrial-grade DC-DC converters improve overall system reliability by maintaining stable output voltage while protecting sensitive electronic equipment from abnormal operating conditions.

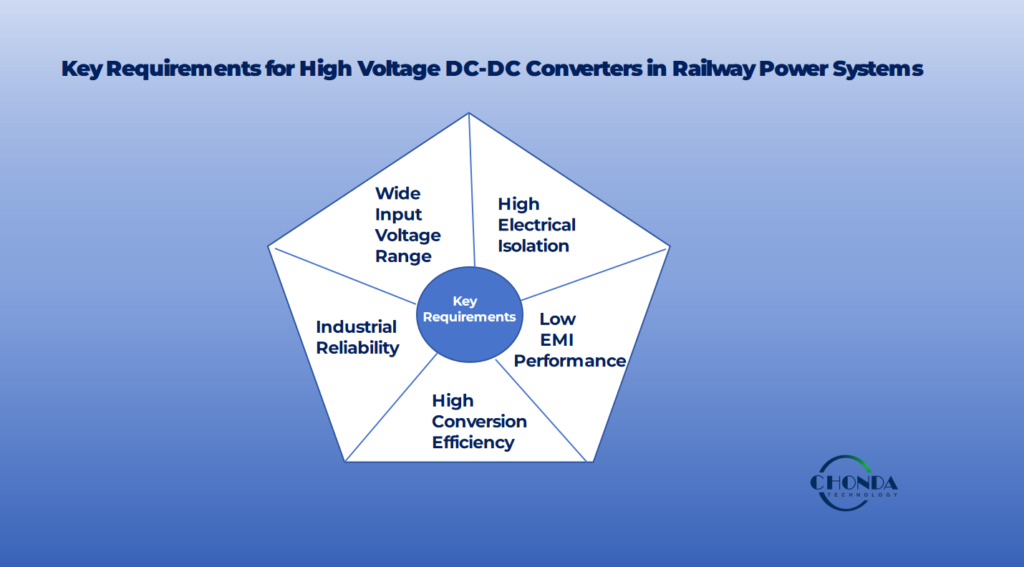

3. Key Requirements for High Voltage DC-DC Converters in Railway Power Systems

Railway applications place extremely high demands on power converters because onboard electronic systems must operate continuously under vibration, temperature variation, electrical transients, and long service life requirements. Selecting the right high voltage DC-DC converter helps ensure stable auxiliary power while improving operational safety and reducing maintenance throughout the railway system lifecycle.

3.1.Wide Input Voltage Range

Railway DC bus voltage can fluctuate significantly during acceleration, regenerative braking, and different operating conditions.

A wide input voltage range enables a single converter to maintain stable operation across the entire DC bus variation without requiring additional power conditioning equipment. This improves system flexibility while simplifying onboard power architecture.

3.2.High Electrical Isolation

Railway auxiliary electronics must be electrically isolated from high-voltage traction power.

High isolation voltage protects control equipment from hazardous DC bus voltages, reduces common-mode interference, and improves passenger safety while helping railway systems comply with industrial transportation standards.

3.3.Low EMI Performance

Modern railway systems contain communication networks, signaling equipment, controllers, and sensitive monitoring electronics.

Low electromagnetic interference minimizes conducted and radiated noise, improving communication reliability while reducing interference with other onboard electronic systems.

3.4.High Conversion Efficiency

Efficient power conversion reduces internal energy loss and heat generation inside railway electronic equipment.

Higher efficiency lowers cooling requirements, improves thermal management, and contributes to longer operating life for continuously powered railway systems.

3.5.Industrial Reliability

Railway power supplies are expected to operate reliably for many years under harsh environmental conditions.

Industrial-grade converters featuring wide operating temperature capability, comprehensive protection functions, and robust mechanical design help ensure continuous operation while minimizing maintenance and system downtime.

4. CHONDA High Voltage DC-DC Converter Solution for Railway Applications

Railway electronic systems require stable auxiliary power that can operate reliably under high-voltage DC bus conditions while meeting demanding industrial transportation requirements.

CHONDA provides high voltage DC-DC converter solutions designed to convert high-voltage railway DC bus power into stable isolated 24VDC auxiliary power for onboard control and monitoring equipment.

The following diagram illustrates a typical railway power architecture using a high voltage DC-DC converter to supply reliable auxiliary power for railway electronic systems.

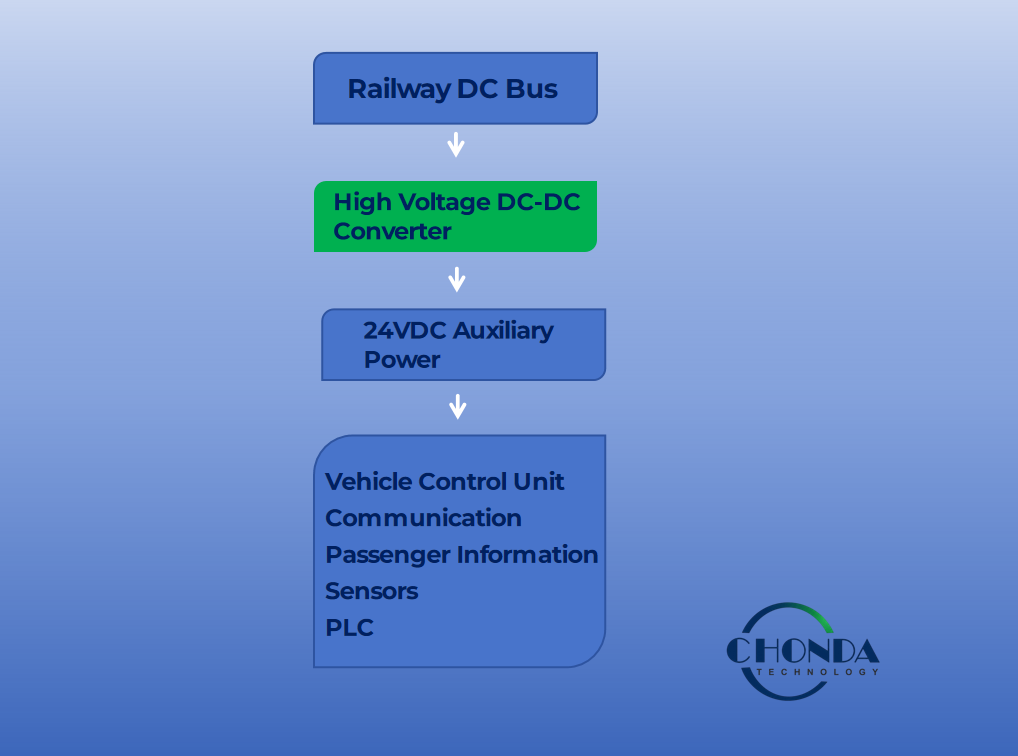

Typical railway power architecture using a high voltage DC-DC converter to supply isolated 24VDC auxiliary power

As shown above, the high voltage DC-DC converter isolates the railway DC bus from low-voltage electronic equipment while providing stable 24VDC auxiliary power for vehicle control units, communication systems, passenger information systems, PLCs, and sensors.

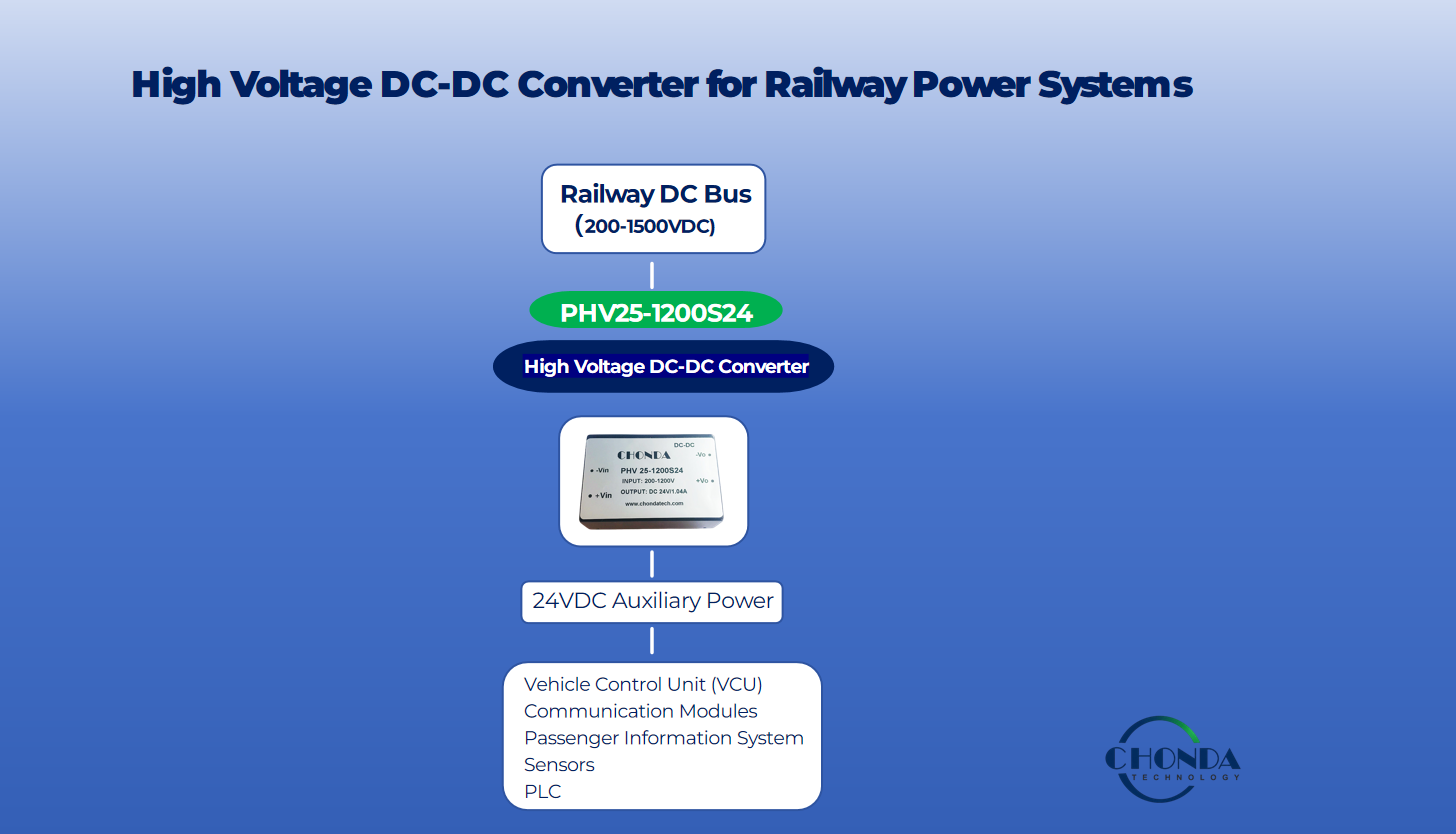

4.1.PHV25-1200S24 for Railway Applications

For railway applications, the PHV25-1200S24 provides reliable isolated DC power conversion from high-voltage railway DC bus systems to stable 24VDC auxiliary power.

4.2.Typical Features

Ultra-wide 200–1200VDC input range
Stable 24VDC regulated output
High electrical isolation for onboard safety
Low EMI design for communication reliability
Comprehensive protection functions
Industrial-grade reliability for continuous railway operation

These features make the PHV25-1200S24 suitable for a wide variety of railway applications, including:

Railway vehicle control systems
Communication equipment
Passenger information systems
Industrial PLCs
Railway monitoring electronics
Intelligent sensor networks

For projects requiring different input voltage ranges, output voltages, mechanical configurations, or application-specific requirements, CHONDA also provides custom high voltage DC-DC converter OEM solutions for railway and other industrial applications.

👉 Learn more about our Custom High Voltage DC-DC Converter OEM Solutions.

5. Conclusion

Railway power systems operate in demanding environments where reliability, electrical safety, and continuous operation are essential. High voltage DC-DC converters play a critical role by converting high-voltage railway DC bus power into stable low-voltage auxiliary power for onboard electronic equipment.

With wide input voltage capability, reinforced isolation, low EMI performance, and industrial-grade reliability, the PHV25-1200S24 provides an efficient solution for railway communication systems, vehicle control units, passenger information systems, PLCs, and other auxiliary electronics.

For projects requiring customized input voltage ranges, output voltages, package dimensions, or application-specific requirements, CHONDA also provides custom high voltage DC-DC converter OEM solutions for industrial and railway applications.
